Optical Hybrid

Optical Hybrid

5.0 / 5
Product SKU : OPBL

Availability: In Stock

$145

Optical Hybrid is a 1.5 mil double ply film. Optical films are Hybrid films; it is a High-Performance Non-Metalized film. In other words, they look like Premium Plus films (no lustre), but they work like High-Performance films.

+ -

Optical Hybrid is a 1.5 mil double ply film. Optical films are Hybrid films; it is a High-Performance Non-Metalized film. In other words, they look like Premium Plus films (no lustre), but they work like High-Performance films. These films are specially designed for high-end luxury vehicles that come with the radio antenna built in the rear windshield, to prevent the interruption of radio and GPS signalling. This film rejects up to 53% of heat.

This film comes with a Life Time Warranty of No Colour Fading and Peel Off.

Optical Hybrid

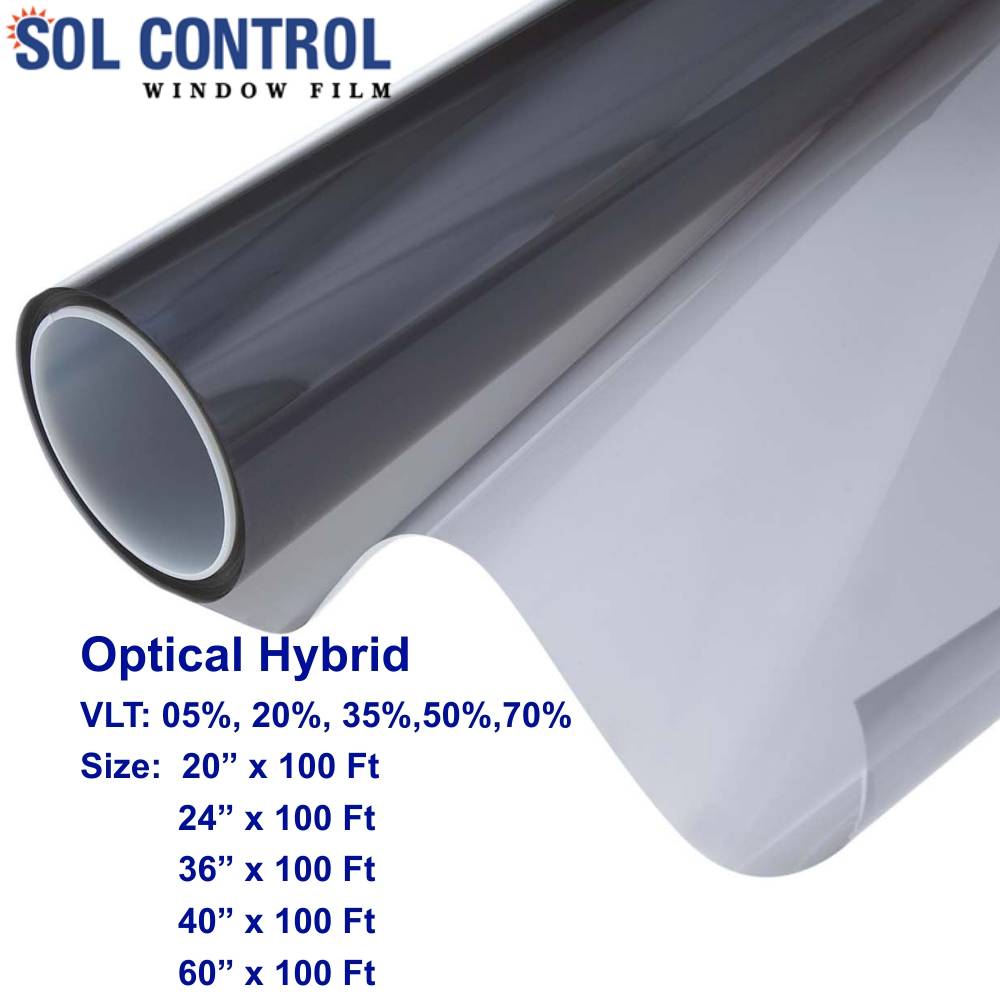

Width10"20"24"36"40"60"
Visual Light Transmission05%20%35%50%70%
Thickness1.5 Mil - Double Ply
Length100 Ft Roll
WarrantyLifetime Warranty
Note: The performance data reported on this page was tested at DSET Lab & MATRIX Lab, USA using ASHRAE, ASTM & AIMCOL Standards. All values are applied to 1/8 inch (3mm) glass. Tests are representative of actual production samples and may vary from batch to batch.
Optical Hybrid
05%20%35%
Thickness of Film (Mil) 1 1 1
% Solar Energy Transmittance 41 48 54
% Solar Energy Absorptance 57 47 40
% Solar Energy Reflectance 22 12 08
% Visible Light Transmittance 04 19 30
% Visible Light Reflectance 04 05 07
% Ultra Violet Rejected < 2 < 2 < 2
Shading Coefficient 0.40 0.56 0.66
% Total Solar Energy Rejected 43 39 37
% Glare Reduction 93 77 67
Emissivity 0.66 0.71 0.76
Winter Median U Value 1.03 1.09 1.12
