IR LITE Ceramic Film : CS30
IR Rejection of this Film is 30%
Nanoceramic / IR films offer the ultimate in performance for owners that want the best. Made with our market-leading IR coating technology, these films offer the highest Infra-red rejection available combined with style and performance.
Provides maximum heat rejection without the risk of interference to GPS, TPMS, and navigation caused by traditional metal-based films.
- Improves comfort due to maximum heat reduction
- Highest IR rejection of any film - up to 99%
- Non-metalized construction eliminates signal interference
- Improves personal safety by blocking 99% of UVA & UVB rays
- Reduces glare and fading of vehicle’s interior
- Lifetime warranty

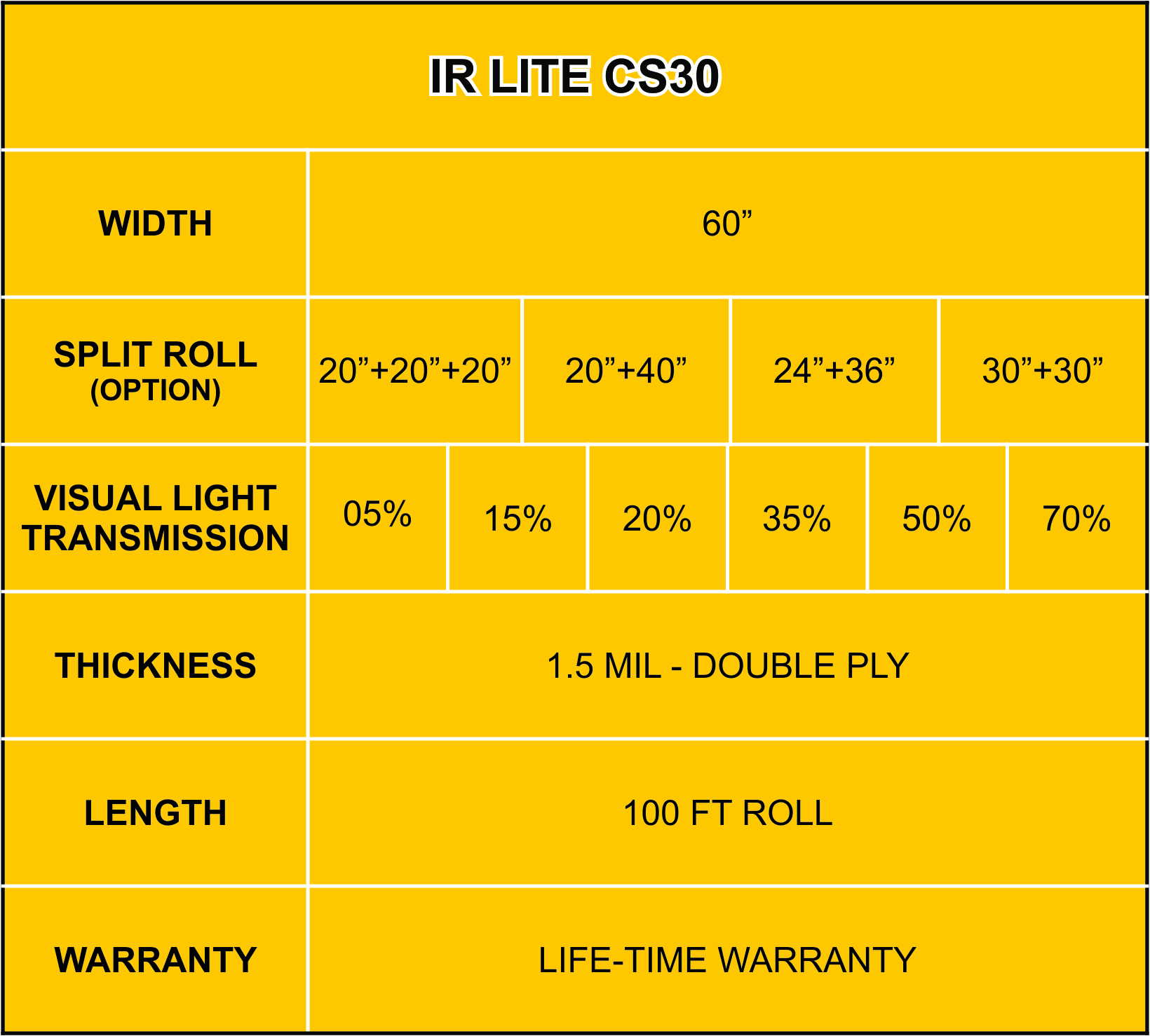

| IR Lite CS30 |
|---|
| Width | 60" |
|---|
| Split Roll (Option) | 20"+20"+20" | 20"+40" | 24"+36" | 30"+30" | |
|---|
| Visual Light Transmission | 05% | 15% | 20% | 35% | 50% | 70% |
|---|
| Thickness | 1.5 Mil - Double Ply |
|---|
| Length | 100 Ft Roll |
|---|
| Warranty | Lifetime Warranty |
|---|
Note: The performance data reported on this page was tested at DSET Lab & MATRIX Lab, USA using ASHRAE, ASTM & AIMCOL Standards. All values are applied to 1/8 inch (3mm) glass. Tests are representative of actual production samples and may vary from batch to batch.

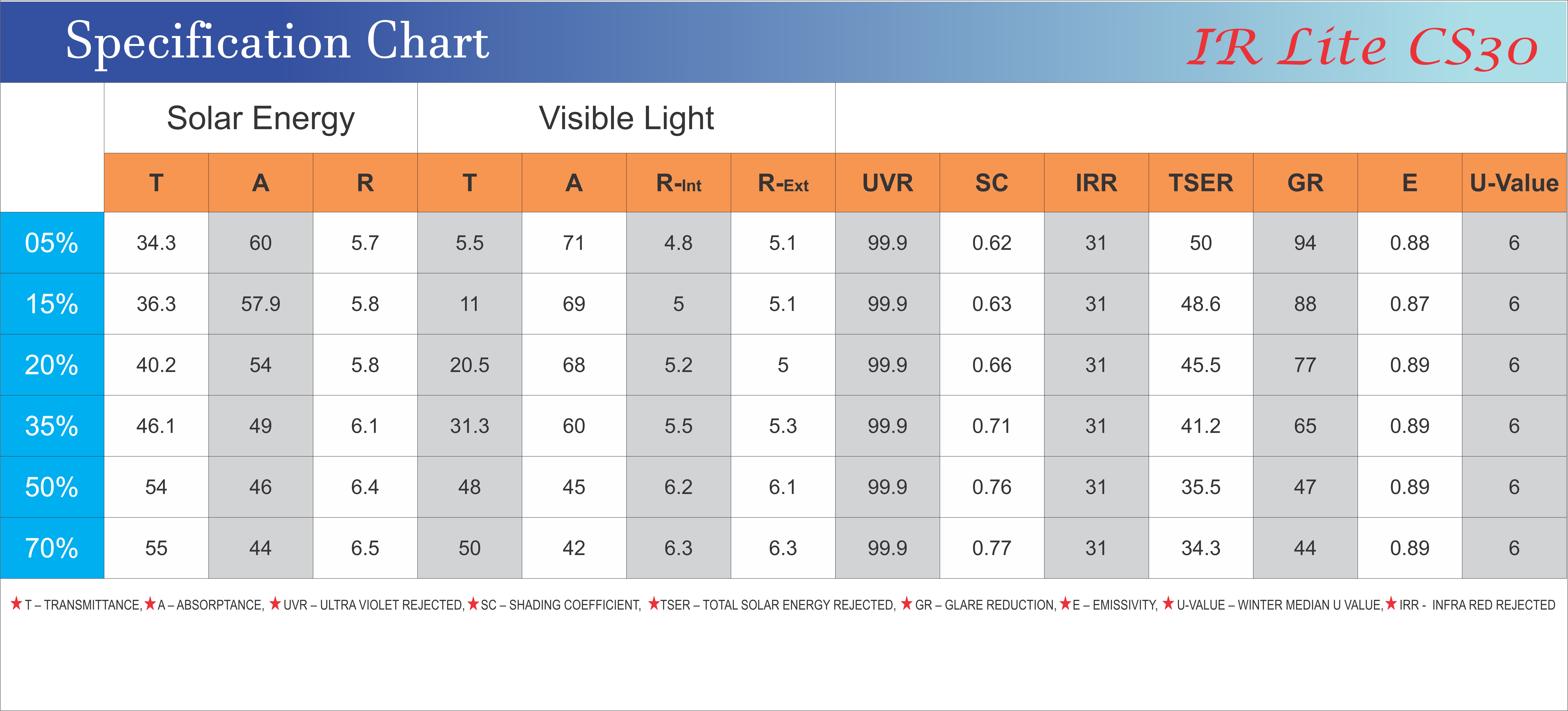

| IR Lite CS30 |
|---|
| 05% | 15% | 20% | 35% | 50% | 70% |
|---|
| % Solar Energy Transmittance | 34.3 | 36.3 | 40.2 | 46.1 | 54 | 55 |
|---|
| % Solar Energy Absorptance | 60 | 57.9 | 54 | 49 | 46 | 44 |
|---|
| % Solar Energy Reflectance | 5.7 | 5.8 | 5.8 | 6.1 | 6.4 | 6.5 |
|---|
| % Visible Light Transmittance | 5.5 | 11 | 20.5 | 31.3 | 48 | 50 |
|---|
| % Visible Light Absorptance | 71 | 69 | 68 | 60 | 45 | 42 |
|---|
| % Visible Light Reflectance Int. | 4.8 | 5 | 5.2 | 5.5 | 6.2 | 6.3 |
|---|
| % Visible Light Reflectance Ext. | 5.1 | 5.1 | 5 | 5.3 | 6.1 | 6.3 |
|---|
| % Ultra Violet Rejected | 99.9 | 99.9 | 99.9 | 99.9 | 99.9 | 99.9 |
|---|
| Shading Coefficient | .62 | .63 | .66 | .71 | .76 | .77 |
|---|
| % Infra Red Rejected | 31 | 31 | 31 | 31 | 31 | 31 |
|---|
| % Total Solar Energy Rejected | 50 | 48.6 | 45.5 | 41.2 | 35.5 | 34.3 |
|---|
| % Glare Reduction | 94 | 88 | 77 | 65 | 47 | 44 |
|---|
| Emissivity | .88 | .87 | .89 | .89 | .89 | .89 |
|---|
| Winter Median U Value | 6 | 6 | 6 | 6 | 6 | 6 |
|---|
